Fore/Aft—TCM

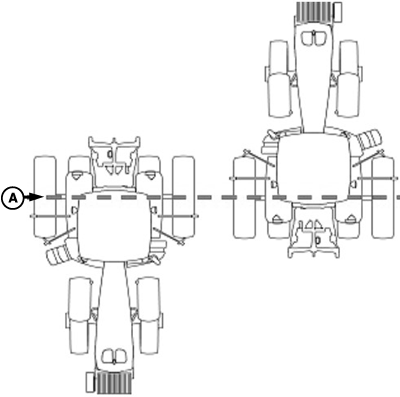

PC8278-UN-22JUN04
Floating Front Axle Machines

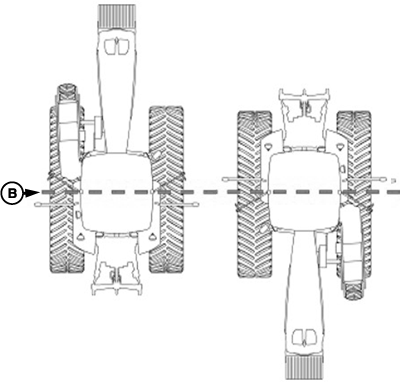

PC8277-UN-01MAY06
Fixed Axle Wheels or Tracks Machines
A - Pivot Point—Floating Front Axle Machines
B - Pivot Point—Fixed Axle Wheels or Tracks Machines
The fore/aft value is the distance that receiver is located from pivot point (A or B) of machine.
On some AutoTrac™ equipped machines, fore/aft value is automatically detected and entered during power up.
If fore/aft value is shown and input box is disabled:
- Value has been automatically set and cannot be changed. Value shown may not be exact distance that receiver is located from pivot point of machine, but is the best fore/aft value for AutoTrac™.
If fore/aft value is shown and input box is enabled:
- Value must be entered manually.
- Select input box and use numeric keypad to enter fore/aft value.
NOTE: For greatest accuracy, manually measure fore/aft distance.
Recommended StarFire™ Fore/Aft Values For John Deere Machines
|
John Deere Machine |
StarFire™ Original Shroud Fore/Aft |
Deluxe Shroud Fore/Aft |
|
6000 Series Tractors |
180 cm (71 in) |
154 cm (60.5 in) |
|
7000 Series Tractors |
210 cm (82.5 in) |
183 cm (72 in) |
|
8000 Series Tractors |
210 cm (82.5 in) |
183 cm (72 in) |
|
8000T Series Tractors |
51 cm (20 in) |
24 cm (9.5 in) |
|
9000 Series Tractors |
-51 cm (-20 in) |
-77 cm (-30.5 in) |
|
9000T Series Tractors |
51 cm (20 in) |
24 cm (9.5 in) |
|
4700 Series Sprayers |
280 cm (110 in) |
253 cm (99.5 in) |
|
4900 Series Sprayers |
460 cm (181 in) |
433 cm (170.5 in) |
|
Combine |
220 cm (87 in) |
220 cm (87 in) |
|
Forage Harvester |
157 cm (62 in) |
157 cm (62 in) |
|
