Height—TCM

PC12016-UN-22APR09

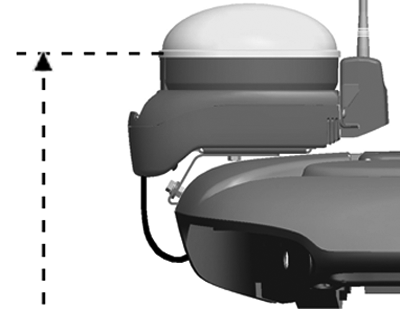

Height is measured from ground to middle of receiver dome.

Select input box and use numeric keypad to enter height.

Under or over compensation for machine roll angles occurs if height is incorrectly entered during setup.

Example: A 10 degree slope with a StarFire™ height error of 30.5 cm (12 in) results in a position offset of 5 cm (2 in) on ground.

Factory default setting is 320 cm (126 in). On some AutoTrac™ equipped machines, height value is automatically detected and entered during power up. Because this dimension is critical for proper operation of TCM and can vary due to machine configuration and tire sizes, operator should measure actual distance each time TCM is installed on a different machine.

NOTE: For greatest accuracy, manually measure receiver height distance.

John Deere Machine	StarFire™ Original Shroud Height	Deluxe Shroud Height
6000 Series Tractors	280 cm (111 in)	291 cm (114.5 in)
7000 Series Tractors	305 cm (120 in)	314 cm (123.5 in)
8000 Series Tractors	320 cm (126 in)	329 cm (129.5 in)
8000T Series Tractors	320 cm (126 in)	329 cm (129.5 in)
9000 Series Tractors	361 cm (142 in)	370 cm (145.5 in)
9000T Series Tractors	356 cm (140 in)	365 cm (143.5 in)
4700 Series Sprayers	389 cm (153 in)	396 cm (156 in)
4900 Series Sprayers	396 cm (156 in)	396 cm (156 in)
Combine	396 cm (156 in)	396 cm (156 in)

NOTE: Actual height varies depending on tire size or tire inflation.
