Install StarFire™ 6000 Receiver

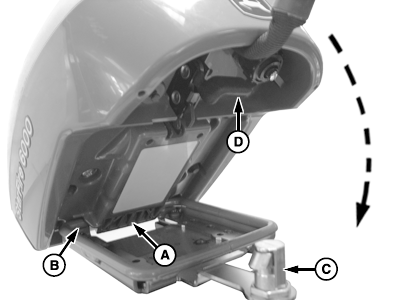

PC21385-UN-23JUL15

Install Receiver

A - Rear Hook

B - Pivot Bar

C - Optional Lock

D - Release Lever

1. Slide rear hook (A) under pivot bar (B).

2. Pull receiver shroud down until latch locks. To verify latch, pull front of shroud up.

   If using optional lock (C), pull release lever (D) to unlatch, and pull up on front of shroud to ensure lock engaged.

3.

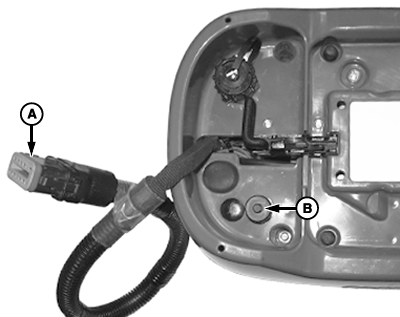

   PC20648-UN-07JAN15

   A - 12-pin Connector

   B - Ethernet Port

   Connect receiver harness to 12-pin connector (A).

   NOTE: Ethernet port (B) is for future use. Keep Ethernet cap installed.

---
