Remove StarFire™ 6000 Receiver

PC20649
PC20649-UN-07JAN15

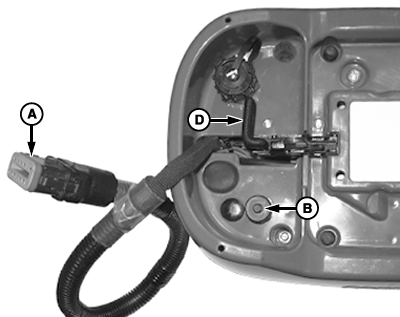

StarFire™ 6000 Receiver

PC20650
PC20650-UN-07JAN15

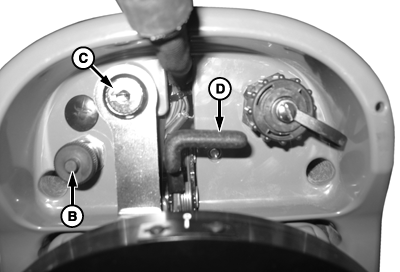

Unlatch StarFire™ 6000 Receiver

A - 12-pin Connector

B - Ethernet Port

C - Receiver Lock

D - Release Lever

  1. Disconnect receiver harness from 12-pin connector (A).

  2. If Ethernet cable (B) is connected, disconnect from receiver.

  3. If equipped with optional lock, use key (C) to unlock receiver.

  4. Pull release lever (D) to unlatch, pull up on front of shroud, and remove receiver.

HC94949,00007AD-19-20150722
