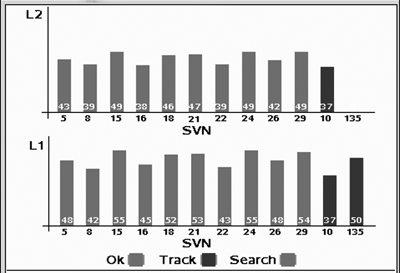

Graph

PC21324-UN-06JUL15

Signal-to-noise Ratio (SNR) Values

NOTE: L1 and L2 signal-to-noise ratio (SNR) values are displayed when GPS is selected on Sky Plot tab, and G1 and G2 SNR values are displayed when global navigation satellite system (GLONASS) is selected.

• Bars are colored according to status.
• SNR values are displayed inside colored bars.

NOTE: Only green bars are used in calculation of positional dilution of precision (PDOP), vertical dilution of precision (VDOP), and horizontal dilution of precision (HDOP).
