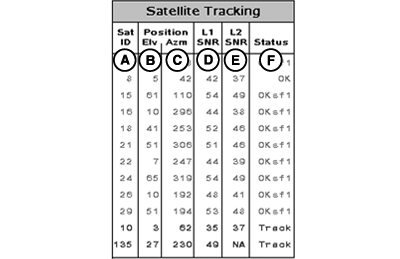

Satellite Tracking Chart

PC20515-UN-09DEC14

Satellite Tracking Chart

A - Sat ID

B - Position Elv

C - Position Azm

D - L1 SNR

E - L2 SNR

F - Status

• Satellite Identification (Sat ID) (A)–Satellite identification number.
• Position Elevation (Elv) (B)–Satellite elevation in degrees above horizon.
• Position Azimuth (Azm) (C)–Satellite azimuth in degrees from true north. NOTE: L1 and L2 signal-to-noise ratio (SNR) values are displayed when GPS is selected, and G1 and G2 SNR values are displayed when global navigation satellite system (GLONASS) is selected.

• L1 SNR (D)–L1 global positioning system (GPS) signal-to-noise ratio.
• L2 SNR (E)–L2 GPS signal-to-noise ratio.
• G1 SNR–G1 GLONASS signal-to-noise ratio.
• G2 SNR–G2 GLONASS signal-to-noise ratio.
• Status (F)–Status of satellite signal.
  • Search–Searching for satellite signal.
  • Track–Tracking satellite signal and using it for positioning.
  • OK–Tracking satellite signal and using it for positioning.
  • OK SF1–Tracking satellite signal and using it for positioning with SF1 signal.
  • OK SF3–Tracking satellite signal and using it for positioning with SF3 signal.
  • OK real time kinematic (RTK)–Tracking satellite signal and using it for positioning with RTK signal.
