Reading Satellite Sky Plot

PC21381-UN-20JUL15

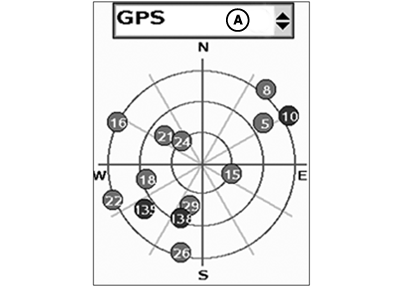

Sky Plot

A - Satellite System Drop-Down Menu

• Select satellite system from drop-down menu (A).
  • GPS–Global positioning system
  • GLONASS–Global navigation satellite system
  • StarFire™
• Sky Plot is fixed so that North is always at top.
• Satellites are displayed as their satellite identification (ID) number that correspond to Satellite Tracking chart.
  • Red–Indicates satellite is in search mode.
  • Blue–Indicates satellite is being tracked.
  • Green–Indicates satellite is being used for corrections.
• Sky Plot consists of three concentric rings depicting 0, 30, and 60 degrees of elevation with directional crossbar intersection representing 90 degrees of elevation.
• Radial lines extending from center of Sky Plot represent azimuth, and are spaced 30 degrees apart.
• Directional crossbar representing North, South, East, and West also represent azimuth at 0, 90, 180, and 270 degrees.
