Access GreenStar™ 2 Display and GreenStar™ 3 Display Diagnostics

PC8663-UN-29APR15

Menu Button

PC8664-UN-05AUG05

Message Center Button

PC8655-UN-05AUG05

Message Center Button

Message Center displays all active alarm messages.

To navigate to Message Center, select Message Center button (displays time) or select Menu button > Message Center button.

PC20149-UN-29OCT14

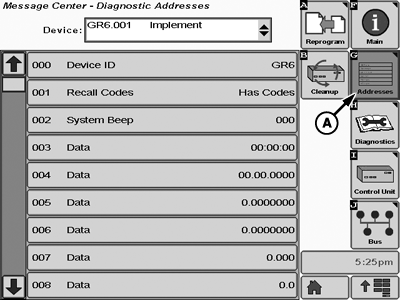

Diagnostic Addresses

A - Diagnostic Address Softkey

Diagnostic Addresses

NOTE: Diagnostic addresses are available to access specific diagnostic information. This information assists John Deere dealers in diagnosing problems. Different device controllers can be selected from drop-down menu.

Select Diagnostic Address softkey (A). The number of devices available depends on machine configuration. Scroll through list to view addresses. Select an address to display details.
