GreenStar™ 2 and 3 Displays–Diagnostic Information

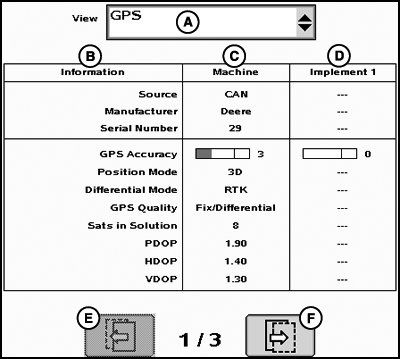

PC12120-UN-11JUN09

GreenStar™ – Diagnostic Information 1/3

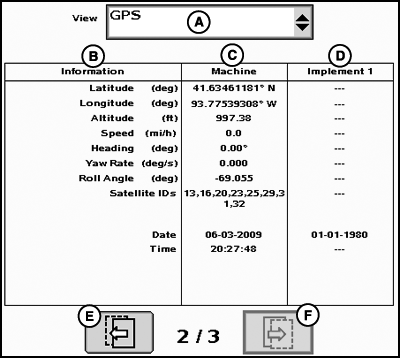

PC12121-UN-11JUN09

GreenStar™–Diagnostic Information 2/3

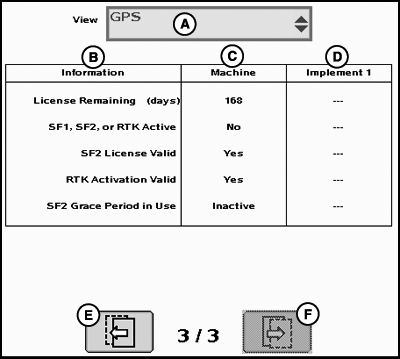

PC12122-UN-11JUN09

GreenStar™–Diagnostic Information 3/3

A - View–GPS

B - Information

C - Machine

D - Implement 1

E - Previous Page

F - Next Page

Select Menu button > GreenStar™ button > Diagnostics softkey > GPS from View drop-down menu (A).
