Diagnostic Readings Tab

PC21442-UN-25AUG15

Diagnostic Readings Tab

Select information from drop-down menu.

Hardware and Software

• Software Part Number
• Software Version Number
• Hardware Part Number
• Hardware Serial Number

System Voltages

• Unswitched Voltage
• Switched Voltage
• CAN High Voltage (Vehicle CAN Bus)
• CAN Low Voltage (Vehicle CAN Bus)

Receiver Status

• Receiver Hours
• Receiver Address
• External Antenna
• Serial NMEA

The following readings only appear when receiver has a real time kinematic (RTK) activation.

RTK

• RTK Software Version Number (RTK Radio Software Version)
• RTK Serial Number (RTK Radio Serial Number)
• RTK Status
• RTK Search Time(s)
• RTK Satellites in Search (above ten degrees elevation)

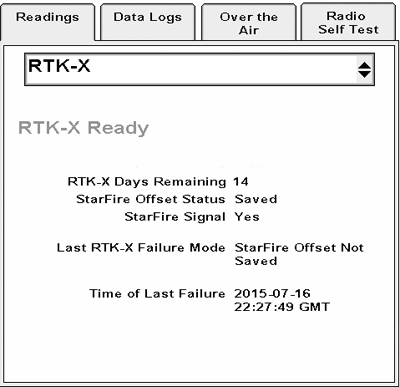

• RTK-X–RTK Extend for up to 14 days when RTK signal is lost.
