Diagnostic Over-the-Air Tab

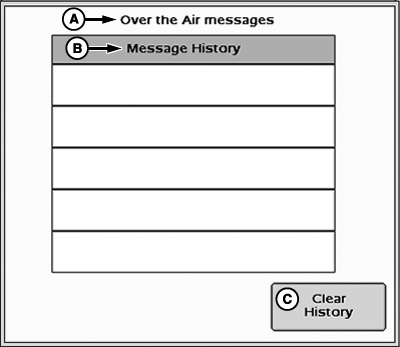

PC20009-UN-10SEP14

A - Over the Air Messages

B - Message History

C - Clear History Button

Over-the-Air (OTA) messages (A) allow StarFire™ 6000 Receiver to receive license subscriptions and activations through the StarFire™ network. Rather than getting a license subscription code over the phone or internet, the license subscription code is transmitted wirelessly from a StarFire™ satellite.

Go to StellarSupport.com, and enter a request to send the receiver the license immediately or after a time delay. At the machine, receiver must be powered up and tracking satellites to accept OTA activation. If the activation does not successfully load, call StellarSupport™ with receiver serial number to have activation regenerated.

Message History (B)–Shows OTA messages that have been received since receiver has been powered on. History shows whether an OTA activation was applied successfully or not.

Clear History Button (C)–Erases OTA message history.
