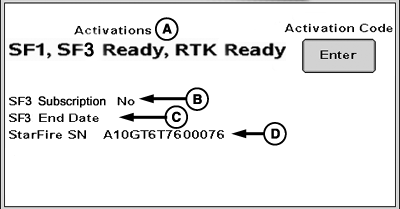

Activations

PC21418-UN-30JUL15

A - Activations

B - SF3 Subscription

C - SF3 End Date

D - StarFire™ S.N.

Activations (A)–Displays activations on receiver.

• SF1–Activated on every receiver.
• SF3 Ready (if available)–Receiver must be SF3 Ready to license SF3 signal subscription or activate real time kinematic (RTK). An SF3 Ready upgrade can be purchased.
• RTK–Requires RTK Ready activation.

SF3 Subscription (B)–Displays status of receiver SF3 subscription.

• Yes Enabled–A valid SF3 subscription exists, and SF3 is the differential correction mode selected.
• Yes Disabled–A valid SF3 subscription exists, but SF3 is not the differential correction mode selected.
• No–No valid SF3 subscription exists or SF3 subscription has expired.

SF3 End Date (C)–Displays date when SF3 subscription expires.

StarFire™ S.N. (D)–Serial number of StarFire™ Receiver.
