Enter Receiver Fore/Aft

PC8278-UN-22JUN04

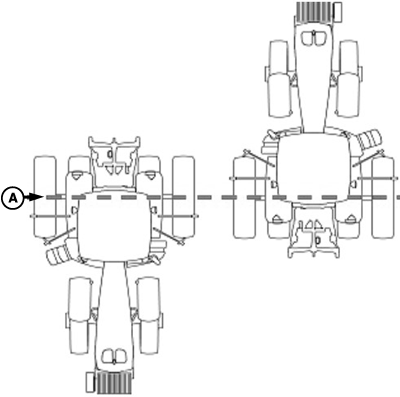

Floating Front Axle Machines

PC8277-UN-01MAY06

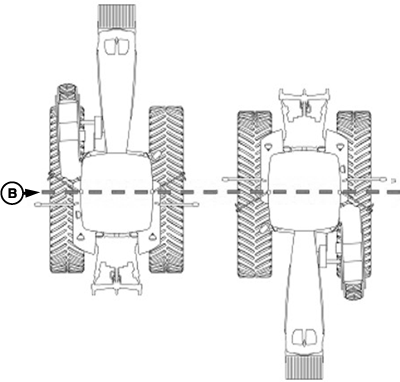

Fixed Axle Wheels or Tracks Machines

PC21388-UN-24JUL15

PC19989-UN-03SEP14

Fore/Aft Value Input Box

A - Pivot Point–Floating Front Axle Machines

B - Pivot Point–Fixed Axle Wheels or Tracks Machines

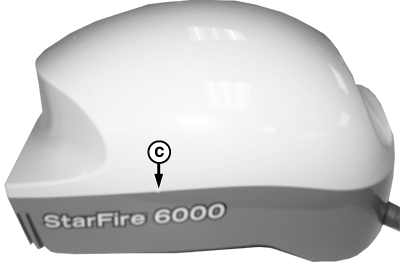

C - Tab

Fore/aft is the distance receiver is located from pivot point (A or B) of machine. Measure from the tabs (C) on either side of receiver.

On some AutoTrac™ equipped machines, fore/aft value is automatically detected and entered during power up.

• If fore/aft value is displayed and input box is disabled, value is automatically set and cannot be changed. Value displayed may not be exact distance receiver is located from pivot point of tractor, but best fore/aft value for AutoTrac™.
• If fore/aft value is displayed and input box is enabled, value must be entered manually.

To enter fore/aft value manually:

1. Select Fore/Aft input box.

2. Enter value using numeric keypad.

3. Select Accept.

NOTE: For greatest accuracy, manually measure fore/aft distance.
