Machine Location and Speed

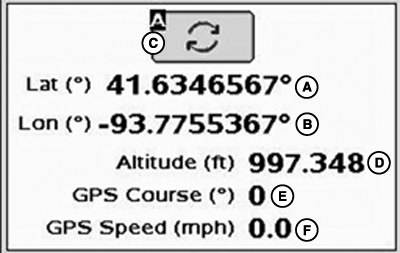

PC21194-UN-27MAY15

Machine Location and Speed

A - Latitude

B - Longitude

C - Toggle Button

D - Altitude

E - GPS Course

F - GPS Speed

Longitude (Lon) (B)–Displays machine location longitude coordinates with respect to Prime Meridian (East or West).

NOTE: Toggle button (C) changes the way latitude and longitude are displayed from degrees, minutes, and seconds to decimal degrees.

Altitude (D)–Displays height of receiver in meters (feet) above sea level, measured from top of dome.

GPS Course (E)–Displays direction of travel, in degrees relative to true north (zero degrees). 90 degrees is East, 180 degrees is South, and 270 degrees is West.

GPS Speed (F)–Displays ground speed of machine in km/h (mph) as measured by receiver.

NOTE: Course and speed normally show small fluctuations even when machine is not moving.
