Calibrate Pressure Sensor

PC8663-UN-29APR15

Menu Button

PC22295-UN-21MAR16

John Deere Rate Controller 2000 Button

PC22296-UN-21MAR16

Setup Softkey

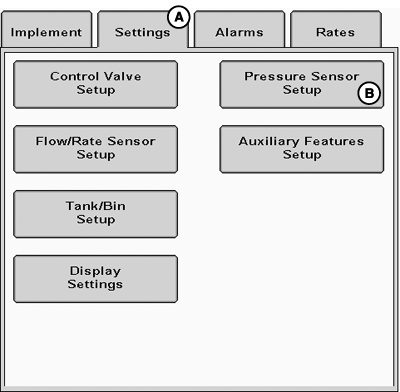

PC22378-UN-31MAR16

A - Settings Tab

B - Pressure Sensor Setup Button

1. Select Menu button.

2. Select John Deere Rate Controller 2000 button.

3. Select Setup softkey.

4. Select Settings tab (A).

5. Select Pressure Sensor Setup button (B).

6.
   PC22379-UN-31MAR16

   Calibrate Pressure Sensor


   PC22380-UN-31MAR16

   Pressure Sensor Drop-down Menu


   PC22382-UN-31MAR16

   Voltage-based Calibration Button


   PC22381-UN-31MAR16

   Operation-based Calibration Button

   Select Calibrate Pressure Sensor button.

---




7. Select sensor to calibrate from Pressure Sensor drop-down menu.

8. Select either Voltage-based Calibration button or Operation-based Calibration button.

Use Voltage-based Calibration when pressure sensor slope is known.

To use Operation-based Calibration, two calibration points must be determined since slope is unknown. Rate controller automatically measures voltage at zero pressure. Second calibration point is measured at an operator desired pressure.

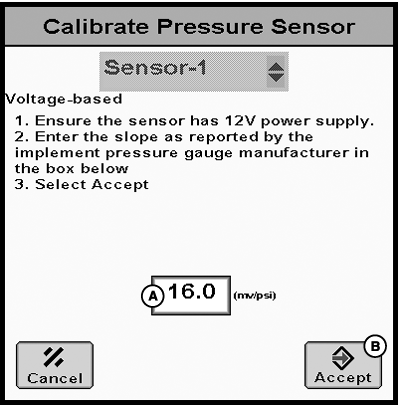

PC22383-UN-31MAR16

A - Voltage Slope

B - Accept Button

1. IMPORTANT: Verify with sensor manufacturer that sensor can accept 12 V power.

   Ensure sensor has 12 V power supply.

2. NOTE: For Raven pressure sensors with a 12 V power supply, slope is 16 mV/psi.

   Enter slope (A) from pressure sensor manufacturer.

3. Select Accept button (B).

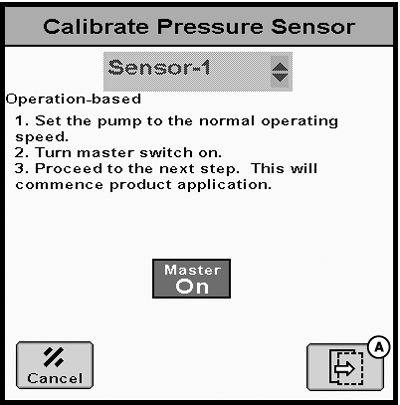

PC22385-UN-31MAR16

A - Next Page Button

1. Set pump to normal operating speed.

2. Turn master switch on.

3. Select Next Page button (A).

4.

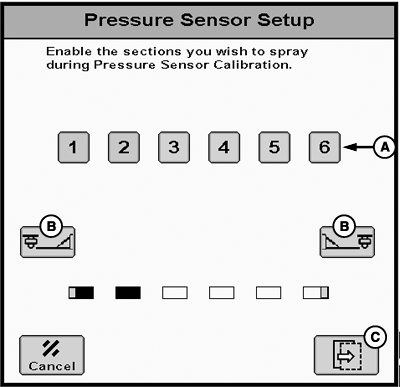

   PC22384-UN-31MAR16

   A - Sections

   B - Fence Row Nozzle

   C - Next Page button

   Enable sections (A and B) to spray during calibration.

---




5. Select Next Page button (C).

6.

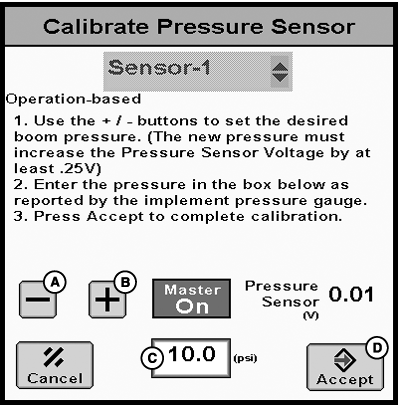

   PC22386-UN-31MAR16

   A - Minus (-) Button

   B - Plus (+) Button

   C - Sensor Pressure

   D - Accept Button

   Use + / - buttons (A and B) to set desired boom pressure. New pressure must increase pressure sensor voltage by at least 0.25 V.

---




7. Enter pressure (C) from implement pressure gauge.

8. Select Accept button (D) to complete calibration.
