Diagnostic Readings

PC8663
PC8663-UN-29APR15

Menu Button

PC22295
PC22295-UN-21MAR16

John Deere Rate Controller 2000 Button

PC21158
PC21158-UN-11MAY15

Diagnostics Softkey

PC22389
PC22389-UN-01APR16

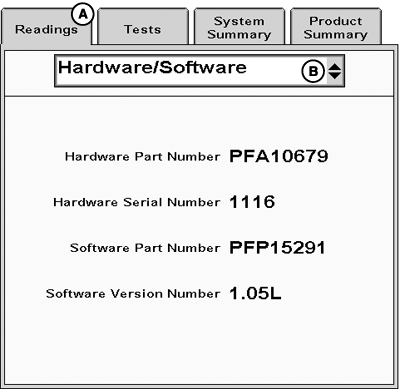

Readings Tab

A - Readings Tab

B - Readings Drop-down Menu


  1. Select Menu button.

  2. Select John Deere Rate Controller 2000 button.

  3. Select Diagnostics softkey.

  4. Select Readings tab (A).

  5. Select readings from drop-down menu (B).

Hardware / Software

  • Hardware Part Number
  • Hardware Serial Number
  • Software Part Number
  • Software Version Number

Switchbox

  • Switchbox Present
  • Status of each switch

Delivery System

  • Application Width
  • Flow Meter
  • Flow Rate
  • Application Rate
  • PWM Duty Cycle

Section Status

  • Status of each section

System Voltage

  • Power
  • Sensor Power A
  • Sensor Power B
  • Sensor Power C
  • Sensor Power D
  • Controller Internal Current
  • Sensor Power Current A
  • Sensor Power Current B
  • Sensor Power Current C
  • 5 V Power Rail Current

Working Parameters

  • Speed
  • Speed Source

Switches / Status

  • Master Switch
  • Height Switch Status

Pressure Sensors

  • Pressure Voltage
  • Pressure Sensor
  • Pressure
  • Slope

RPM Sensors

  • RPM Sensors 1

RW00482,000064E-19-20160420
