Calibrate PWM Limits

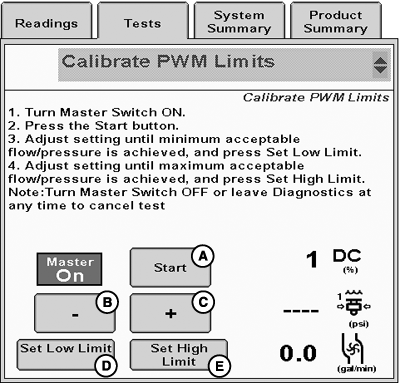

PC22410-UN-04APR16

A - Start Button

B - Minus (-) Button

C - Plus (+) Button

D - Set Low Limit Button

E - Set High Limit Button

NOTE: Turn master switch off or leave Diagnostics at any time to cancel test.

1. Turn master switch on.

2. Select Start button (A).

3. Press and hold - or + buttons (B and C) until minimum acceptable flow / pressure is achieved. Select Set Low Limit (D).

4. Press and hold - or + buttons until maximum acceptable flow / pressure is achieved. Select Set High Limit (E).
