Tiered Boom Operation

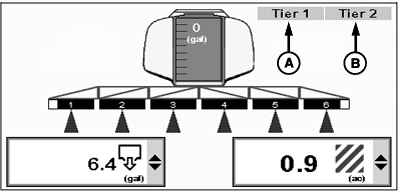

PC22431-UN-05APR16

A - Tier 1

B - Tier 2

John Deere Rate Controller 2000 supports two and three tier systems on sprayers and liquid fertilizer tools. If equipped, Tier Boom Indicators (A and B) display on main run page. Tier boom systems automatically operate a directional valve to direct flow to one or two booms to maintain a specific droplet size.

(Reference Adjust Settings to change boom settings.)

	Boom 1 Only	Boom 2 Only	Operate Both
Two Tier System	Yes	No	Yes
Three Tier System	Yes	Yes	Yes
