System Summary

PC8663
PC8663-UN-29APR15

Menu Button

PC22295
PC22295-UN-21MAR16

John Deere Rate Controller 2000 Button

PC21158
PC21158-UN-11MAY15

Diagnostics Softkey

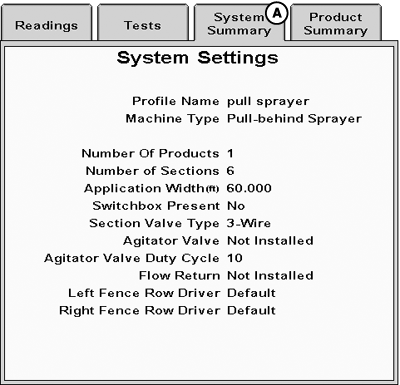

PC22445
PC22445-UN-06APR16

A - System Summary Tab

  1. Select Menu button.

  2. Select John Deere Rate Controller 2000 button.

  3. Select Diagnostics softkey.

  4. Select System Summary tab (A).

System Settings

  • Profile Name
  • Machine Type
  • Number of Products
  • Number of Sections
  • Application Width
  • Switchbox Present
  • Section Valve Type
  • Agitator Valve
  • Agitator Valve Duty Cycle
  • Flow Return
  • Left Fence Row Driver
  • Right Fence Row Driver

RW00482,000065C-19-20160411
