Product Summary

PC8663
PC8663-UN-29APR15

Menu Button

PC22295
PC22295-UN-21MAR16

John Deere Rate Controller 2000 Button

PC21158
PC21158-UN-11MAY15

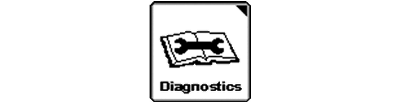

Diagnostics Softkey

PC22446
PC22446-UN-06APR16

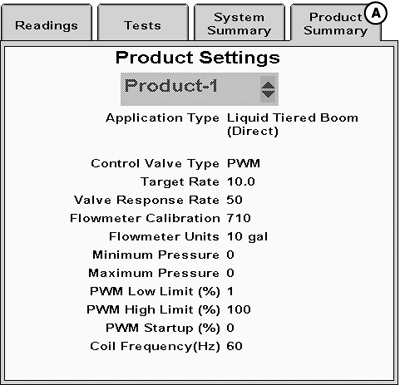

A - Product Summary Tab

  1. Select Menu button.

  2. Select John Deere Rate Controller 2000 button.

  3. Select Diagnostics softkey.

  4. Select Product Summary tab (A).

Product Settings

  • Application Type
  • Control Valve Type
  • Target Rate
  • Valve Response Rate
  • Flowmeter Calibration
  • Flowmeter Units
  • Minimum Pressure
  • Maximum Pressure
  • PWM Low Limit
  • PWM High Limit
  • PWM Startup
  • Coil Frequency

RW00482,000065D-19-20160406
