Test Speed

PC8663-UN-29APR15

Menu Button

PC22295-UN-21MAR16

John Deere Rate Controller 2000 Button

PC22296-UN-21MAR16

Setup Softkey

PC22518-UN-18APR16

Test Speed Button

Enter test speed to simulate ground speed for controller. Test speed clears if actual ground speed is detected.

1. Select Menu button.

2. Select John Deere Rate Controller 2000 button.

3. Select Setup softkey.

4. Select Setup softkey.

5. Select Test Speed button.

6.

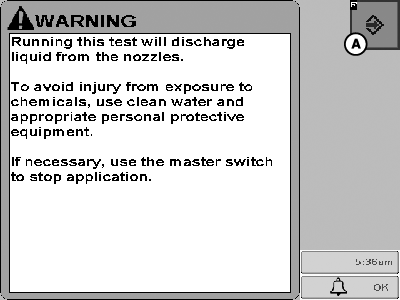

   PC22533-19-20APR16

   A - Accept Softkey

   Read Diagnostic Tests Warning and select Accept softkey (A).

---




7.

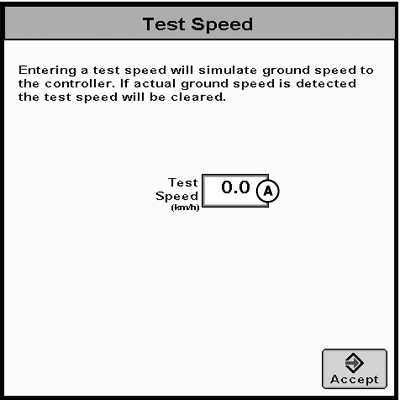

   PC22519-UN-18APR16

   A - Test Speed

   Enter Test Speed (A).

---
