Implement Height Indicator

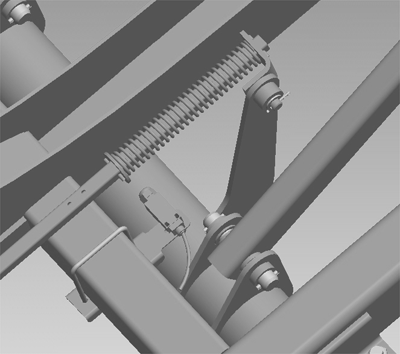

PC10226-UN-15JUN07

Height Switch

Implement height indicator (switch or sensor) prevents product from discharging unless implement is lowered into the ground.

• Height switch is required for NH3 applications.
• Height switch is optional for liquid fertilizer tool applications.
• Height switch or sensor is optional for air cart applications.
• Not available for sprayer or spreader applications.

Verify that height indicator operates correctly by raising and lowering implement while observing the height switch indicator on display.

If the system detects the implement has been down for an extensive period when applying NH3, an alert displays.

(Reference Malfunction of Implement Height Switch Detected in Safety Signs section).
