Activate System

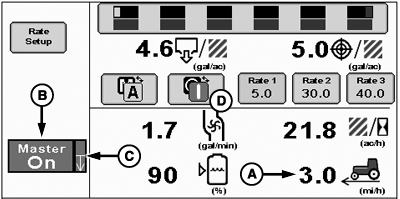

PC22413-UN-05APR16

A - Ground Speed

B - Master Switch Indicator

C - Height Switch Indicator

D - System Enable / Disable Toggle

Requirements to activate system:

• Machine ground speed (A) is greater than 0.8 km/h (0.5 mph).
• Master switch (B) is on.
• If equipped, implement height switch (C) is engaged.
• System Toggle (D) enabled. If operating multiple products, enable System Toggle on each product run page desired for operation.

If one or more requirements are not met, system does not apply product. If all requirements are met and Master Switch indicator turns orange, cycle master foot switch.
