Refilling Tank

PC22414
PC22414-UN-05APR16

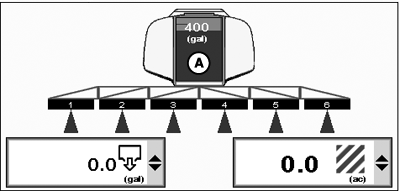

Sprayer and Liquid Fertilizer Tool

PC22424
PC22424-UN-05APR16

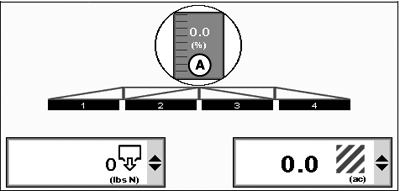

NH3

PC22675
PC22675-UN-19MAY16

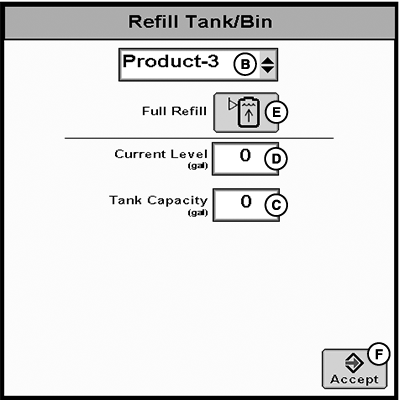

A - Tank Level Indicator and Fill Button

B - Product Drop-down Menu

C - Tank Capacity

D - Current Level

E - Full Refill Button

F - Accept Button

  1. Select Tank Level Indicator and Fill button (A).

  2. If operating a multiple product configuration, select desired product for drop-down menu (B)

  3. Verify Tank Capacity (C). If needed, enter new value.

  4. Enter Current Level (D) or select Full Refill button (E).

  5. Select Accept button (F).

RW00482,00006A8-19-20160609
