Review Totals

PC8663
PC8663-UN-29APR15

Menu Button

PC22295
PC22295-UN-21MAR16

John Deere Rate Controller 2000 Button

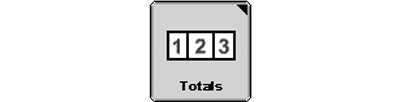

PC22425
PC22425-UN-05APR16

Totals Softkey


Totals displays current totals and lifetime totals of device.

  1. Select Menu button.

  2. Select John Deere Rate Controller 2000 button.

  3. Select Totals softkey.

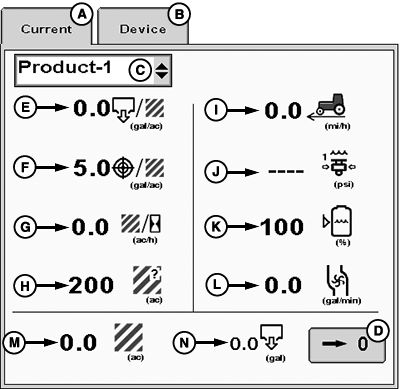

  4. PC22688
    PC22688-UN-24MAY16

    Current Tab

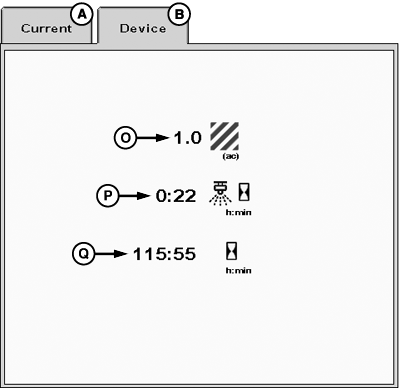

    PC22689
    PC22689-UN-24MAY16

    Device Tab

    A - Current Tab

    B - Device Tab

    C - Product Drop-down Menu

    D - Reset Counter Button

    E - Actual Rate Per Area

    F - Target Rate Per Area

    G - Area Per Hour

    H - Area Remaining at Current Tank Level

    I - Traveling Speed

    J - Pressure Sensor 1

    K - Volume Remaining

    L - Volume Per Time (Flow rate)

    M - Total Area (Current)

    N - Volume Applied

    O - Total Area (Device)

    P - Time Spent Applying

    Q - Total Hours

    Select Current tab (A) or Device tab (B).

    • Current tab displays instant values of each product. Select Product to view from drop-down menu (C). To zero current totals, select Reset Counter button (D).
    • Device tab displays totals for lifetime of current profile.



RW00482,00006AB-19-20160524
