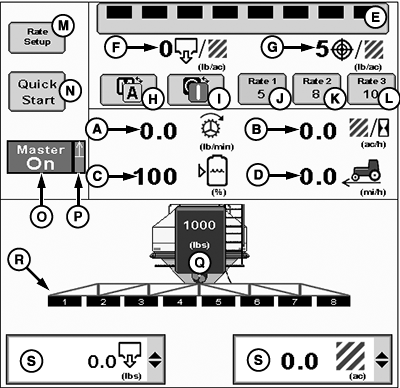

Run Page Overview — Air Cart

PC22707-UN-27MAY16

A - Kilograms (Pounds) Per Minute

B - Area Per Hour

C - Volume Remaining

D - Traveling Speed

E - Section Switchbox Button

F - Actual Rate

G - Target Rate

H - Manual / Automatic Toggle

I - System Enable / Disable Toggle

J - Predefined Rate 1 Button

K - Predefined Rate 2 Button

L - Predefined Rate 3 Button

M - Rate Setup Button

N - Quick Start Button

O - Master Switch Indicator

P - Implement Height Indicator

Q - Tank Level Indicator and Fill Button

R - Implement Sections

S - Data Field Drop-down Menu

Data Fields (A—D) display selected settings and can be changed to operators preferences.

(Reference Display Settings Button for more information.)
