Calibrate Rate Sensor — Dry Catch Test

PC8663-UN-29APR15

Menu Button

PC22295-UN-21MAR16

John Deere Rate Controller 2000 Button

PC22296-UN-21MAR16

Setup Softkey

PC22369-UN-31MAR16

A - Settings Tab

B - Flow / Rate Sensor Setup Button

Place containers (such as calibration containers) under application point to capture product during test. Repeat Rate Sensor Calibration as many times as needed for all product and sections that requires testing. By measuring these samples and entering values into system, an accurate rate sensor calibration value is determined.

1. Select Menu button.

2. Select John Deere Rate Controller 2000 button.

3. Select Setup softkey.

4. Select Settings tab (A).

5. Select Flow / Rate Sensor Setup button (B).

6.

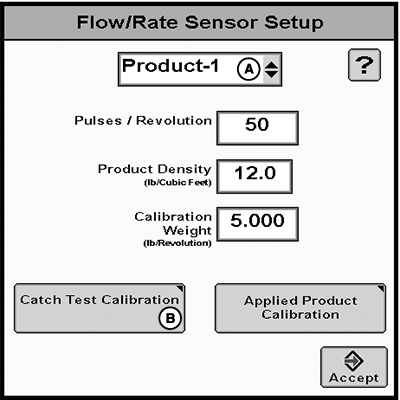

   PC22718-UN-02JUN16

   A - Product Drop-down Menu

   B - Catch Test Calibration Button

   Select Product for drop-down menu (A).

---




7. Select Catch Test Calibration button (B).

8. NOTE:

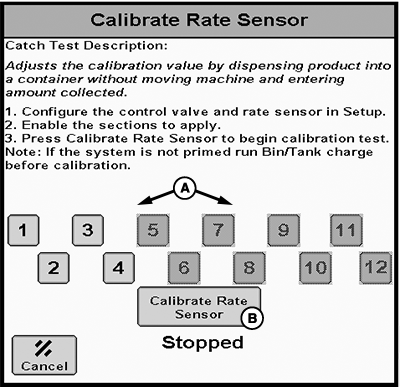

   PC22713-UN-01JUN16

   A - Sections

   B - Calibrate Rate Sensor Button

   If system is not primed, charge tank or bin before calibration.

   (Reference Tank / Bin Charging for more information.)

   Configure control valve and rate sensor.

---




9. NOTE: In multiple product configurations, only sections assigned to selected product may be selected. Repeat Flowmeter Calibration as many times as needed for all product and sections that requires testing.

   Enable sections (A) to apply.

10. Select Calibrate Rate Sensor (B).

11. NOTE:

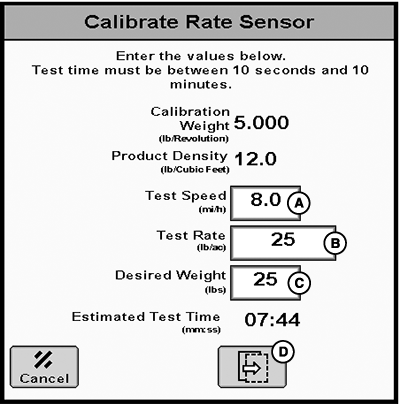

    PC22719-UN-02JUN16

    A - Test Speed

    B - Test Rate

    C - Desired Weight

    D - Next Page Button

    Enter conditions that are comparable to normal operation. Larger dispense volumes result in longer, but more accurate, calibration tests.

    Enter calibration test parameters (A—C).

---




12. Select Next Page button (D).

13.

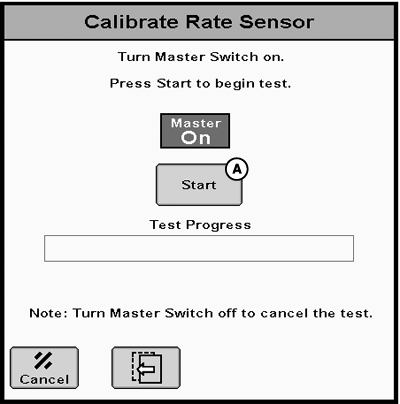

    PC22372-UN-31MAR16

    A - Start button

    Turn master switch on.

---




14. Select Start button (A) to begin test.

15. NOTE:

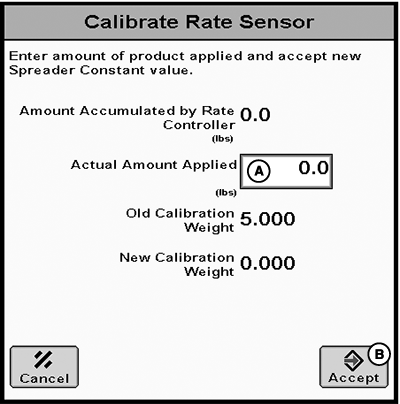

    PC22720-UN-02JUN16

    A - Actual Amount Applied

    B - Accept Button

    Turn master switch off at any time to cancel test.

    Enter Actual Amount Applied (A).

---




16. Select Accept button (B).
