Tests

PC8663-UN-29APR15

Menu Button

PC22295-UN-21MAR16

John Deere Rate Controller 2000 Button

PC21158-UN-11MAY15

Diagnostics Softkey

PC22396-UN-01APR16

PC22532-UN-20APR16

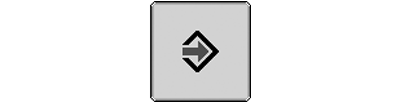

Accept Softkey

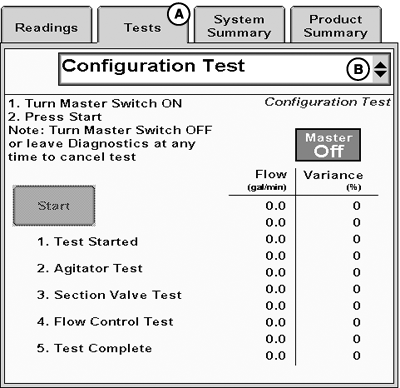

A - Tests Tab

B - Tests Drop-down Menu

1. Select Menu button.

2. Select John Deere Rate Controller 2000 button.

3. Select Diagnostics softkey.

4. Select Tests tab (A).

5. Select test from drop-down menu (B).

   Liquid Diagnostic Test Warning displays after selecting any of the following for liquid applications:

   • Configuration Test
   • Nozzle Flow Check
   • Rinse Cycle
   • Control / Section Test
   • Control Valve Test
   • Calibrate PWM Limits



   NH3 Diagnostic Test Warning displays after selecting any of the following for NH3 applications:

   • Energize System
   • Bleed System Test



   Dry Diagnostic Test Warning displays after selecting any of the following for dry applications:

   • Granular Flow Check
   • Spreader / Air Cart Check
   • Control / Section Test
   • Calibrate PWM Limits
   • Bin / Tank Cleanout



6. Read Discharge Warning and select Accept softkey.

Liquid Diagnostic Test Warning

PC13156-19-17FEB11

This message displays when any diagnostic test is selected that will discharge liquid.

NH3 Diagnostic Test Warning

PC13151-19-17FEB11

This message displays when any diagnostic test is selected that will discharge anhydrous ammonia.

Dry Diagnostic Test Warning

PC13642-19-14JUL11

This message displays when any diagnostic test is selected that will discharge dry products.
