Connect Implement

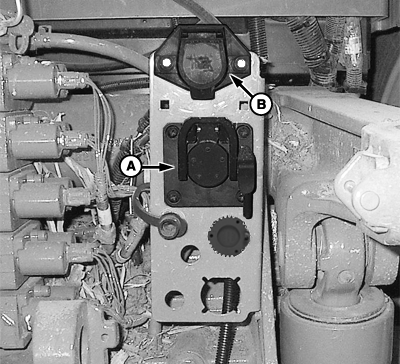

PC21197-UN-27MAY15

Rear of Tractor Shown

A - ISO 9-pin Connector

B - Lighting Connector

1. Shut off machine, set parking brake, and remove key.

   NOTE: Do not connect implement when machine is on. Connecting while powered generates faults causing Active Implement Guidance not to operate.

2. Connect implement receiver harness to ISO 9-pin connector (A).

3. Connect implement constant power harness to machine constant power connector.

4. If implement is configured with road lights, connect lighting harness to lighting connector (B).

5. Connect all other implement connections related to attaching equipment to tractor.

   NOTE: Hydraulic hose routing is essential for proper operation. External valve has a P stamped for pressure hose connection, T for return or tank hose connection, and LS for load sense hose connection.

6. If external valve is used, connect pressure hose and return or tank hose from external valve to machine. If using power beyond to supply external valve, connect load sense hose.

(Reference machine Operator’s Manual for additional information on attaching implement and implement hydraulics to machine.)
