Application Controller

PC20218-UN-07NOV14

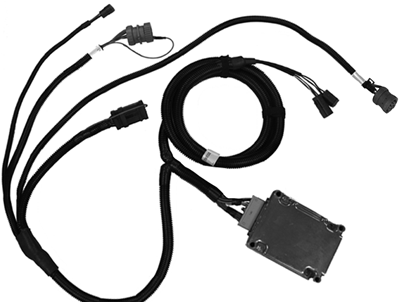

Application Controller 1100 with Harness

Application Controller 1100 obtains guidance line information from display and machine receiver. Guidance line information is compared to implement receiver location to calculate implement lateral error. Application Controller 1100 sends necessary commands to either external valve or machine hydraulic controller to manipulate implement steering mechanism to track the guidance line. If implement utilizes Implement Steering control mode, wheel angle sensor data is also utilized to track the guidance line.
