Reset Application Controller 1100

PC22232
PC22232-UN-29FEB16

PC22233
PC22233-UN-29FEB16

PC22234
PC22234-UN-29FEB16

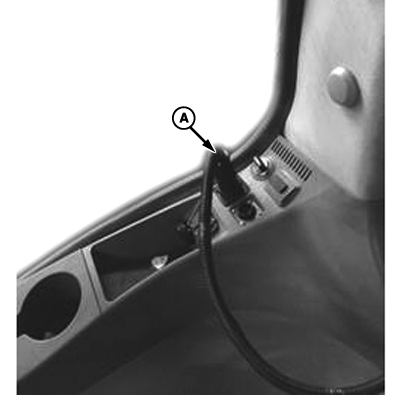

A - Constant Power Connector

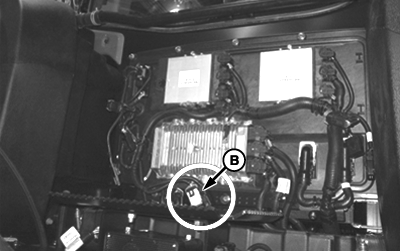

B - Option Connector

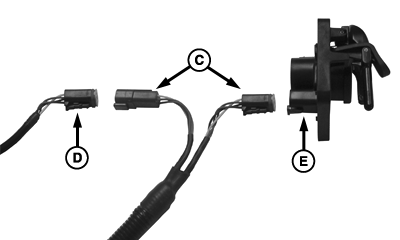

C - CAN Bus T-connectors

D - 4-Pin Can Bus Connector

E - ISO Implement Connector

IMPORTANT: Do not connect application controller while machine is powered on. Connecting while powered can create CAN bus communication errors and generate hydraulic controller faults.

  1. Turn off machine.

  2. Disconnect constant power connector (A) and option connector (B).

  3. Disconnect CAN bus T-connectors (C) and connect 4-pin CAN bus connector (D) directly to ISO implement connector (E).

  4. Start machine. Once all systems start up, turn off machine.

  5. Reconnect constant power harness and option connector.

  6. Reconnect CAN bus T-connectors between 4-pin connector and ISO implement connector.

RW00482,00005B8-19-20160316
