System Status

1.
   PC8663-UN-29APR15

   Menu Button


   PC14926-UN-27APR12

   Application Controller 1100 Button


   PC13072-UN-16NOV10

   Application Controller Main Softkey


   PC18007-UN-07NOV13

   Implement Steer Main Button


   PC13527-UN-03MAY11

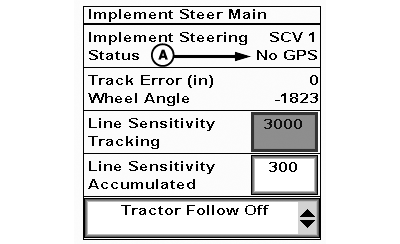

   Status Code Location

   A - Status Code

   Select Menu button.

---




2. Select Application Controller 1100 button.

3. Select Application Controller Main softkey.

4. Select Implement Steer Main button.

Status Code	Description	Solution
Not Activated	Desired application has not been activated on controller.	Obtain an activation code for application.
No GPS	No global position system (GPS) correction available.	Ensure StarFire Receivers on implement and machine are connected and functioning properly.
Cycle Power	Controller must be restarted to communicate with new function.	Shut off machine, wait for display to power down, then restart machine.
No RTK	No real time kinematic (RTK) correction seen on selected receiver, or RTK not currently available.	Activate RTK on implement receiver and (or) machine receiver.
Update GPS SW	Incompatible software loaded.	Update software on StarFire Receivers to newest version.
Tractor SCV Not Auto	Selective control valve (SCV) control not detented to engage Active Implement Guidance.	Detent SCV to engage Active Implement Guidance. For external valve, detent added SCV lever.
OK	Active Implement Guidance is ready to operate, or is operating without errors. Any faults are likely to be independent of Active Implement Guidance control system.	System working properly.
Implement Up	Implement is raised or has faulty implement height switch.	Ensure requirement to engage is correct.
