Configure StarFire™ Receiver

PC8663
PC8663-UN-29APR15

Menu Button

PC20634
PC20634-UN-19DEC14

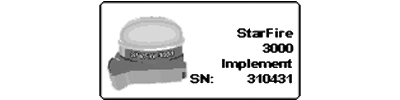

StarFire™ Implement Button

PC20530
PC20530-UN-10DEC14

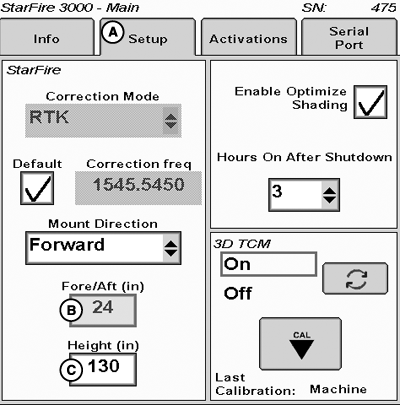

A - Setup Tab

B - StarFire™ Fore/Aft Input Box

C - StarFire™ Height Input Box

  1. Select Menu button.

  2. Select StarFire™ Implement button.

  3. Select Setup tab (A).

  4. Enter a 0 for implement receiver Fore/Aft (B).

  5. Enter implement receiver Height (C). Height is measured from ground to the middle of dome. Lower implement as close as possible to working position when measuring height.

StarFire is a trademark of Deere & Company

RW00482,000068B-19-20160504
