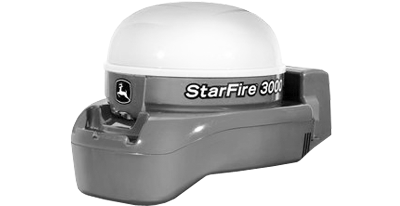

StarFire™ Receiver

PC13406-UN-20APR11

StarFire™ Receiver

• Both receivers must have an RTK signal level, unless shared signal is used.
• Install implement receiver less than 4.0 m (13.1 ft) above ground level.
• Implement receiver must be connected to machine’s implement CAN bus through ISO connector.

StarFire™ Receiver — Shared Signal

NOTE:

PC13797-UN-02JUN11

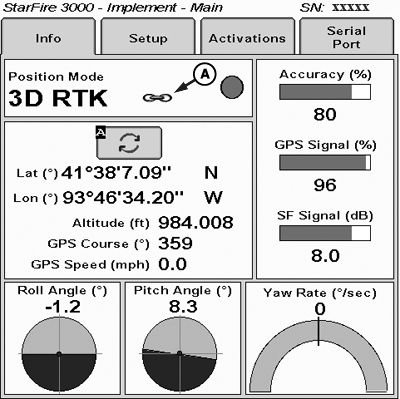

Linked Receivers

PC17672-UN-16SEP13

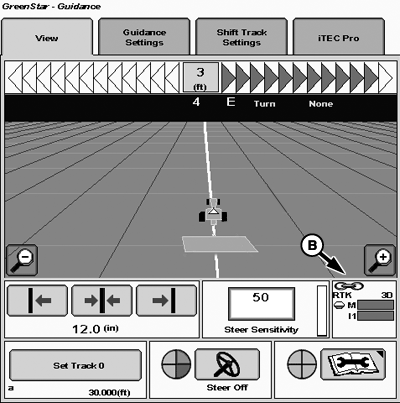

Linked Guidance View Page

A - Linked Receiver Implement Page

B - Linked Guidance View Page

Shared signal uses machine correction signal to share signal with implement receiver. Receiver with highest correction signal must be mounted on machine for shared signal to work.

Shared signal automatically links and operates with Active Implement Guidance when the following requirements are met:

• Machine is moving.
• GreenStar™ 3 2630 Display is used.
• StarFire™ 3000 or StarFire™ 6000 Receivers on machine and implement.
• SF2 or RTK on machine receiver.
• SF1, SF2, or RTK on implement receiver.
• Implement Steer or Implement Shift function is selected.
• Fore/aft value for implement receiver is set to 0.
• Latest software updates on display, receivers, and application controller.
• SCV1 or SCV3 Control Type is not set to iGrade™.

To verify that receivers are linked, check Implement Receiver Main page (A), or Guidance page (B). Link symbol is displayed if receivers share signal.
