Receiver
PC13798-UN-02JUN11

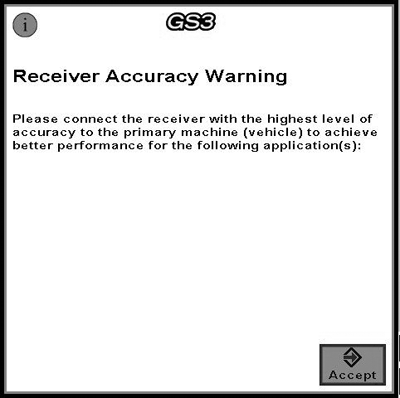

Receiver Accuracy Warning
Receiver Accuracy Warning
Please connect the receiver with the highest level of accuracy to the primary machine (vehicle) to achieve better performance for the following application(s):
|
Receiver Accuracy Warning is displayed. | Correction signal is higher on implement receiver. |
Shared signal automatically uses machine correction signal. Install receiver with higher correction signal on machine. Accuracy warning does not disable shared signal. |
|
Unable to utilize shared signal when machine is moving. | Software issue. |
Ensure application controller, display, and receiver have latest software. (Reference Service section.) |
|
iGrade™ application is active. |
Set SCV1 or SCV3 Control Type to Implement Steering and ensure neither Control Type is set to iGrade™. |
|
|
Both receivers utilize real time kinematics (RTK) and RTK is turned on. |
Turn off RTK on implement receiver. (Reference StarFire™ Receiver Operator’s Manual.) |
|
|
Fore and aft values for implement receiver are not set to zero. |
Set implement fore and aft values to zero. |
|
Receivers not linked with Shared Signal. | Shared Signal is disabled in Implement Steer Setup page. |
1. Select Menu button. 2. Select Application Controller button. 3. Select Application Controller Main softkey. 4. Select Implement Steer Setup button. 5. Select Shared Signal Enabled from drop-down menu. |
|
iGrade is a trademark of Deere & Company StarFire is a trademark of Deere & Company |
AL70325,000037B-19-20160315 |
