Engage Active Implement Guidance

1. If the steering device is not in contact with the ground, Active Implement Guidance cannot effectively steer the implement.

   For ease of instruction, this manual uses selective control valve (SCV) 3 for the Active Implement Guidance system. Operator can choose to use SCV 1 if preferred.

   Set up guidance line on the display.

2.

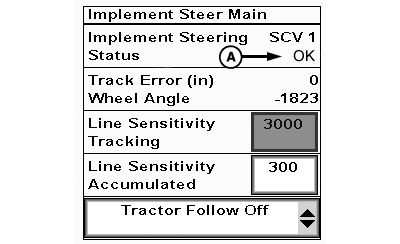

   PC22111-UN-04FEB16

   A - Status

   Verify the Application Controller 1100 Status (A) displays OK.

   (Reference Troubleshooting if status is not OK.)

---




3. SCV cannot change to auto mode when the machine is in park.

   Auto mode requires a speed of 0.8 km/h (0.5 mph) or greater to engage implement hydraulics automatically.

   Take the machine out of park.

4. Leave SCV 3 in detent after each pass.

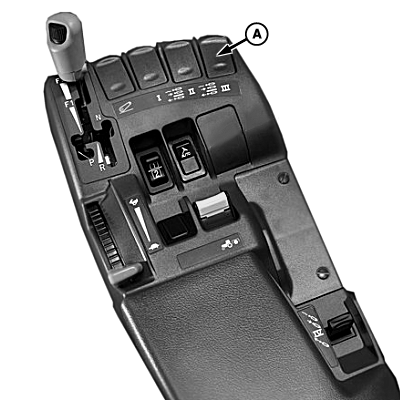

   PC18220-UN-05DEC13

   A - SCV Control Lever

   To engage implement auto mode, place the SCV control lever (A) in the forward detent position.

   •

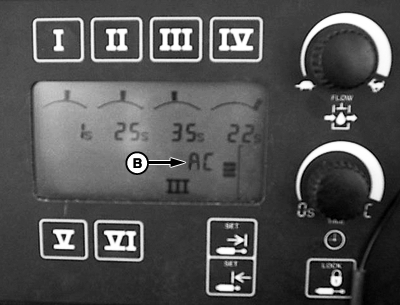

     PC18234-UN-11DEC13

     B - AC Mode

     If operating a machine with a TouchSet™ Display, verify EC changes to AC (B).

   ---

   •

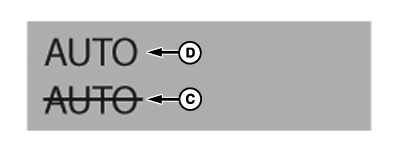

     PC22235-UN-01MAR16

     C - Auto Mode OFF

     D - Auto Mode ON

     If operating a machine with a CommandCenter™, verify auto mode OFF (C) changes to auto mode ON (D).

   ---




---




5. If AutoTrac™ Only is the requirement to engage, Active Implement Guidance begins to acquire line immediately after the AutoTrac™ resume switch is selected. For implements using a coulter steering system, movement starts even if implement is not in contact with ground.

   To activate AutoTrac™ and Active Implement Guidance simultaneously, select the resume switch. Machine and implement steer toward the guidance line.

   Active Implement Guidance operates in reverse for 45 seconds. After 45 seconds, AutoTrac™ and Active Implement Guidance disengage.
