Select Optional Guidance Features

Follow Mode (Implement Steering Only)

Do not use Follow Mode on roadways.

To prevent serious injury, read and follow instructions in this manual to disable Active Implement Guidance before entering roadways.

Follow Mode turns OFF if speed is greater than 35 km/h (21.7 mph).

Follow Mode turns OFF if speed is less than 0.7 km/h (0.45 mph) for more than 30 seconds.

If speed is less than 0.8 km/h (0.5 mph), auto mode turns OFF and implement hydraulics disengage.

Follow Mode sets the implement guidance path in the same path as the machine receiver, including turns on end rows. Using Follow Mode allows Active Implement Guidance to operate while operator is driving machine without a guidance line defined. Follow Mode is useful during the first pass through field when guidance line is being defined.

1.
   PC8663-UN-29APR15

   Menu Button

   Select the Menu button.

---




2.
   PC14926-UN-27APR12

   Application Controller 1100 Button

   Select the Application Controller 1100 button.

---




3.
   PC13072-UN-16NOV10

   Application Controller Main Softkey

   Select the Application Controller Main softkey.

---




4.
   PC18007-UN-07NOV13

   Implement Steer Main Button

   Select the Implement Steer Main button.

---




5.
   PC19792-UN-14AUG14

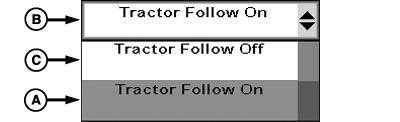

   A - Tractor Follow On

   B - Tractor Follow Drop-Down Menu

   C - Tractor Follow Off

   Select Tractor Follow On (A) from the drop-down menu (B).

---




6. Set AB line. Operator is able to engage and disengage AutoTrac™.

To disengage Follow Mode, select the Tractor Follow Off (C) from the drop-down menu.

Shifter Stay On Mode (Implement Shifting Only)

Shifter Stay On Mode allows implement to follow guidance line independent of machine AutoTrac™ state. Shifter Stay On Enabled is used in applications where operator manually drives machine while implement follows guidance line. Use Shifter Stay On Disabled when AutoTrac™ is used to guide machine.

1.
   PC8663-UN-29APR15

   Menu Button

   Select the Menu button.

---




2.
   PC14926-UN-27APR12

   Application Controller 1100 Button

   Select the Application Controller 1100 button.

---




3.
   PC13072-UN-16NOV10

   Application Controller Main Softkey

   Select the Application Controller Main softkey.

---




4.
   PC19780-UN-07JUL14

   Implement Shift Main Button

   Select the Implement Shift Main button.

---




5.
   PC19905-UN-11AUG14

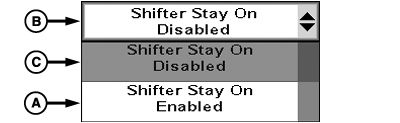

   A - Shifter Stay On Enabled

   B - Shifter Stay On Drop-Down Menu

   C - Shifter Stay On Disabled

   Select Shifter Stay On Enabled (A) form the drop-down (B) menu.

---




6. Drive towards the guidance line.

7. Select AutoTrac™ resume.

8. Disengage AutoTrac™ by moving steering wheel. Implement will continue to track guidance line.

9. When completing a turn, select Shifter Stay On Disabled (C) or implement will continue to steer towards the guidance line unless automatic disengagement distance from the guidance line is met.

Global Line Shifts (Implement Steering Only)

Global line shifts only work with straight track guidance lines.

Use global line shifts to offset the implement based on heading. For example, an implement is traveling north and it is offset to the east. When it is turned around for the next pass and is traveling south, it will still be offset to the east.

Global line shifts support controlled traffic applications where the machine uses permanent traffic lanes in the field. The machine follows the guidance line (tram line) on the permanent track while the Application Controller 1100 commands the implement steering system to shift the implement. Examples of controlled traffic applications are:

• Planting between the crop stubble
• Inter-planting crops

To enable global line shifts, specify offset magnitude and direction. Application Controller 1100 automatically adjusts implement position from pass to pass.

Positive and negative offset direction is determined by travel heading when the feature is turned on. For headings from 0° to less than 180°, shifting to the right is positive and left is negative. For headings from 180° to less than 360°/0°, shifting to the right is negative and left is positive.

1.
   PC8663-UN-29APR15

   Menu Button

   Select the Menu button.

---




2.
   PC14926-UN-27APR12

   Application Controller 1100 Button

   Select the Application Controller 1100 button.

---




3.
   PC13072-UN-16NOV10

   Application Controller Main Softkey

   Select the Application Controller Main softkey.

---




4.
   PC17968-UN-07NOV13

   Implement Steer Setup Button

   Select the Implement Steer Setup button.

---




5.
   PC23215-UN-19OCT16

   Global Line Shifts Button

   Select the Global Line Shifts button.

---




6.
   PC23216-UN-19OCT16

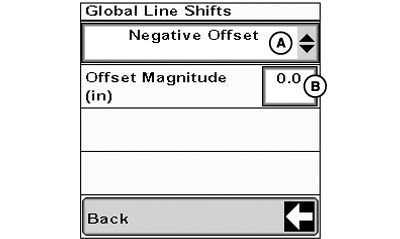

   A - Offsets Drop-Down Menu

   B - Offset Magnitude Input Box

   Select either Positive Offset or Negative Offset from the drop-down menu (A).

---




7. Enter the Offset Magnitude (B).
