Disconnecting the Active Implement Guidance System

If an electronic failure occurs, hydraulic control can be set to operate in normal, manual mode.

If running an external valve, operation is not possible during an electronic failure.

Without electronic control, automatic implement steering adjustments are not possible.

Disconnection Procedure for Changing Machine or Implement:

1. Shut OFF the machine, set the parking brake, and remove the key.

2.
   PC13526-UN-03MAY11

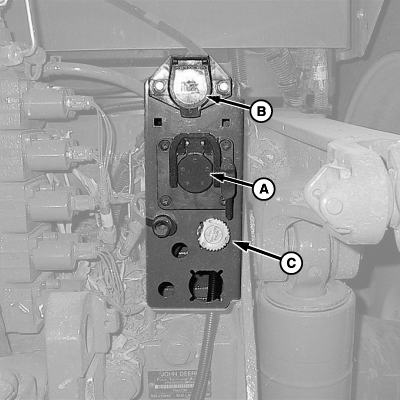

   Rear of Tractor Shown

   A - ISO Connector

   B - Lighting Connector

   C - 9 Pin Feedback Harness

   Disconnect implement receiver harness at ISO 9-pin connector (A).

---




3. Disconnect constant power harness (harness not shown).

   Once completed, machine SCV control reverts to normal manual operation.

4. Disconnect the 9-pin feedback harness (C).

5. Disconnect lighting connector (B) and all other implement connections related to releasing equipment from machine.

Disconnection Procedure for Electronic Failure:

1. Disable Active Implement Guidance.

   (Reference Disable Active Implement Guidance.)

2. Cycle the machine power.

Disconnection Procedure for Permanent Removal:

1. Shut OFF the machine, set the parking brake, and remove the key.

2. Disconnect the Application Controller 1100 from rear of the ISO connector.

3. Remove the Application Controller 1100 and components following procedures in Active Implement Guidance installation instructions.
