Assign Selective Control Valve (SCV)

SCV control type selection must match the connection at the implement feedback sensor harness.

For ease of instruction, this manual uses SCV 3 for the Active Implement Guidance system. Operator can choose to use SCV 1 if preferred.

Assign Control Type to SCV 3:

1.
   PC14926-UN-27APR12

   Application Controller 1100 Button

   Select the Application Controller 1100 button.

---




2.

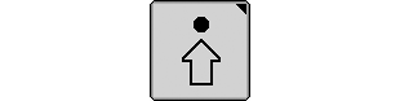

   PC12961-UN-13APR15

   Setup Softkey

   Select the Setup softkey.

---




3.
   PC17972-UN-07NOV13

   Control Selection Button

   Select the Control Selection button.

---




4.

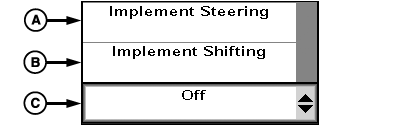

   PC19788-UN-07JUL14

   A - Implement Steering

   B - Implement Shifting

   C - SCV 3 Control Type Drop-Down Menu

   Select either Implement Steering (A) or Implement Shifting (B) from the drop-down menu (C).

---




5. Cycle the machine power.
