Optimize Active Implement Guidance

To optimize guidance line tracking, utilize real time kinematics (RTK) receivers on both machine and implement. Once receivers are set up, disable shared signal so each receiver uses its own RTK signal to track guidance lines.

1.
   PC8663-UN-29APR15

   Menu Button

   Select the Menu button.

---




2.
   PC14926-UN-27APR12

   Application Controller 1100 Button

   Select the Application Controller 1100 button.

---




3.

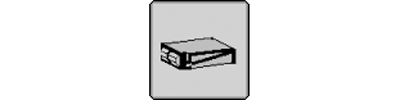

   PC13072-UN-16NOV10

   Application Controller Main Softkey

   Select the Application Controller Main softkey.

---




4.
   PC17968-UN-07NOV13

   Implement Steer Setup Button

   Select the Implement Steer Setup button.

---




5.

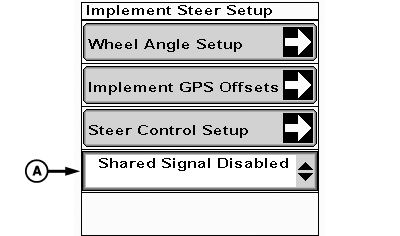

   PC22590-UN-03MAY16

   A - Shared Signal Drop-Down Menu

   Select Shared Signal Disabled from the drop-down menu (A).

---
