Configure Implement StarFire™ Receiver

1.
   PC8663-UN-29APR15

   Menu Button

   Select the Menu button.

---




2.
   PC20634-UN-19DEC14

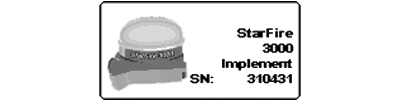

   Implement StarFire™ Receiver Button

   Select the implement StarFire™ Receiver button.

---




3.

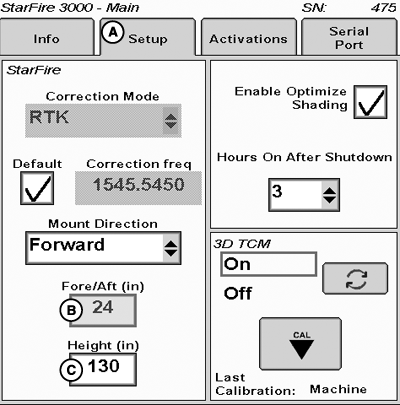

   PC20530-UN-10DEC14

   A - Setup Tab

   B - Fore/Aft Input Box

   C - Height Input Box

   Select the Setup tab (A).

---




4. Enter 0 for the implement receiver Fore/Aft (B).

5. Enter the implement receiver Height (C). Height is measured from the ground to the middle of dome. Lower implement as close as possible to working position when measuring the height.
