Satellite Information

Active Implement Guidance depends on the distribution of satellites providing global positioning system (GPS) signals. Position dilution of precision (PDOP) is an indicator of GPS satellite coverage at the receiver. A lower PDOP value indicates better satellite coverage for calculating both horizontal and vertical position.

Before tuning or adjusting Active Implement Guidance sensitivity values, verify that PDOP value is below 2.5. Sensitivity values set when PDOP value is above 2.5 are inaccurate and must be readjusted.

1.
   PC8663-UN-29APR15

   Menu Button

   Select the Menu button.

---




2.

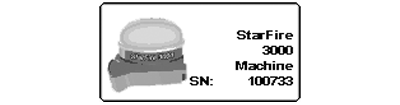

   PC13006-UN-05NOV14

   StarFire™ Button

   Select the StarFire™ button.

---




3.

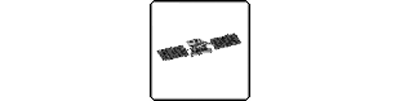

   PC13048-UN-10NOV10

   Satellite Information Softkey

   Select the Satellite Information softkey

---




4.

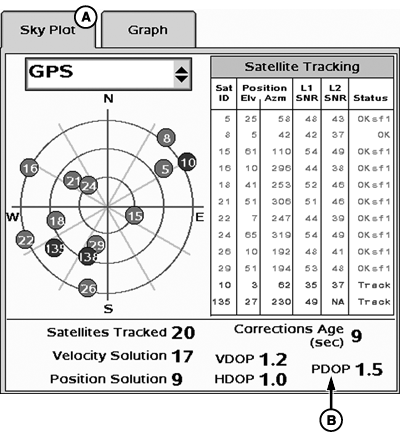

   PC24075-UN-10APR17

   A - Sky Plot Tab

   B - PDOP

   Select the Sky Plot tab (A).

---




5. Verify PDOP (B) is below 2.5.
