Install Hitch Pin Bushings on Ballast Box for Category 1 Quick-Hitch

Install bushings on both hitch pins. Right-hand side shown.

1.
   W04939-UN-22JUL02

   A - Bushing

   B - Bushing

   C - Spring Pin

   Install the bushing (A) over the hitch pin with the cross hole as shown.

---




2. Install the bushing (B) as shown.

3. Align holes in bushings with the hole in the hitch pin and install the spring pin (C).

4.

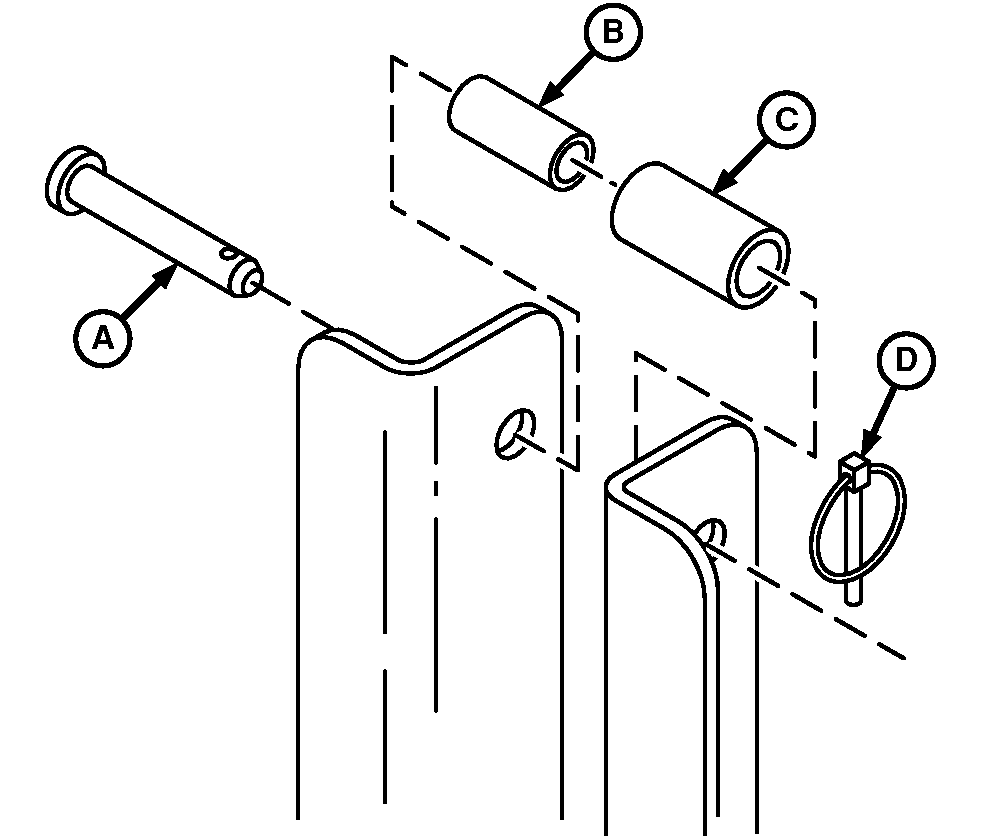

   W05063-UN-05FEB02

   A - Center Link Pin

   B - Bushing (Small)

   C - Bushing (Large)

   D - Quick-Lock Pin

   Assemble bushings (B and C).

---




5. Insert the center link pin (A) through the ballast box mast and bushing assembly. Fasten with the quick-lock pin (D).
