Level in Reverse

1.
   W01786-UN-07JAN97

   Avoid damaging the loader or bending the bucket cutting edge on a solid object while leveling in reverse. Position the bucket 40° or less. Use the FLOAT position to reduce the down-pressure.

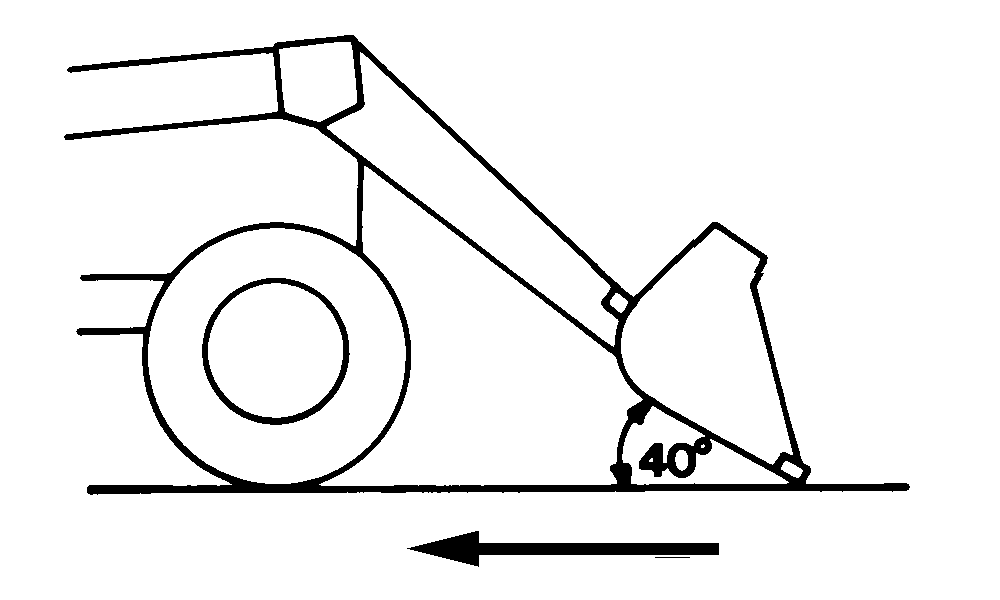

   Position the bucket 40° or less as shown.

---




2. When possible, use the FLOAT position to reduce the down-pressure on the bucket.

3. Back up slowly.
