Identify Hose Connections

W21489-UN-28FEB11

W21490-UN-24FEB11

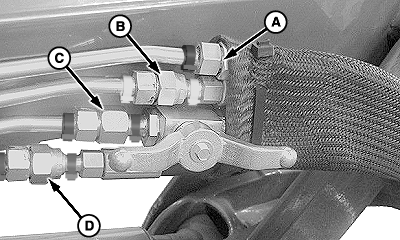

Install color-coded caps on hose ends to identify function
and assist with connection.

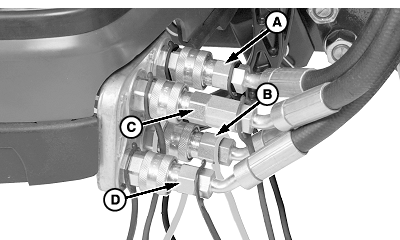

Tractor ports are identified by numbers, colors, and symbols.
|
Key
|
Tractor Connection
|
Plug and Cap Color
|
Hydraulic Function
|
|
A
|
XI Retract
|
Black
|
Bucket Cylinder—Rod End
|
|
B
|
XI Extend
|
Yellow
|
Bucket Cylinder—Head End
|
|
C
|
XII Extend
|
Blue
|
Lift Cylinder—Head End
|
|
D
|
XII Retract
|
Red
|
Lift Cylinder—Rod End
|
|
|
