Replace Orifice

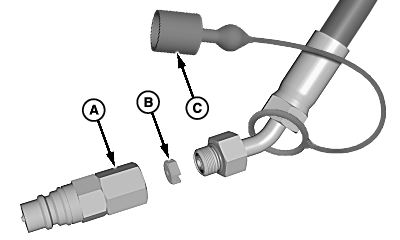

W21491
W21491-UN-25FEB11

A - Adapter Fitting

B - Orifice

C - Cap (BLUE)

Orifice (B) must be in place for more efficient use of tractor hydraulics. The orifice slows the boom lower rate and improves loader control.

Flat face of orifice must be against inside of adapter fitting (A).

Orifice (B) is used in the hose connected to the head-end of lift cylinders. This hose has a blue cap (C).

OUO6038,0001F70-19-20110224
