H120 Loader Specifications on 1023E and 1026R Tractors

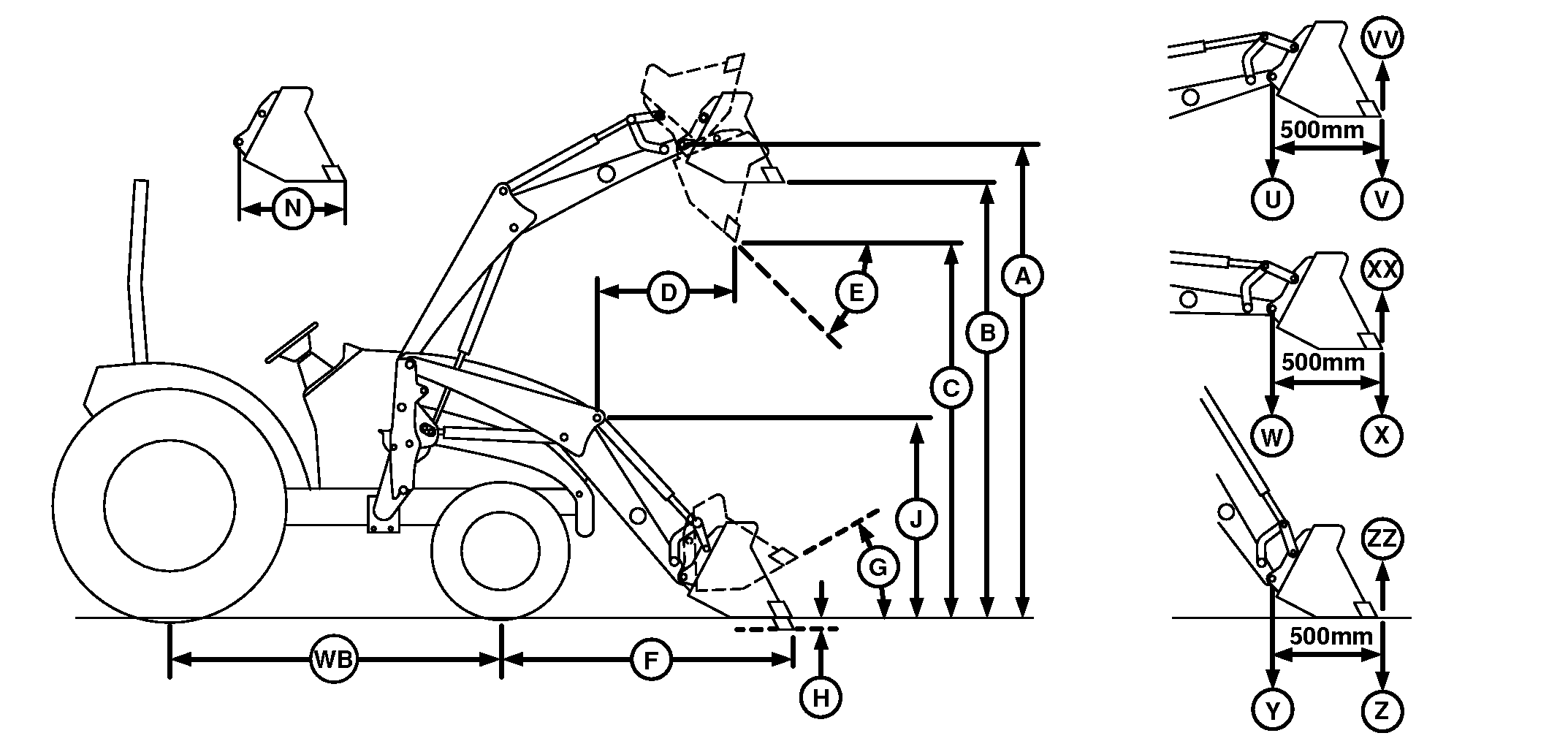

W23764-UN-14JUN13

1023E and 1026R Tractors1
Minimum Rear Ballast	Rear tires filled with liquid ballast2 273 kg (602 lb) minimum (3-point hitch ballast)
Front Tires	18 x 8.5-10
Rear Tires	26 x 12-12
Wheel Base (WB)	1450 mm (57 in)
Heavy Duty Materials Bucket
Width	1250 mm (49 in)
Length	—
Mass	51 kg (112 lb)
Hydraulic System
Rated Flow	13.2 L/min (2.9 gal/min)
Maximum Pressure	13 700 kPa (137 bar) (1987 psi)
Cycle Times (in seconds)
Loader Raise Time	4.0
Loader Lower Time	2.5
Bucket Dump Time	5.7
Bucket Rollback Time	3.5
Lift Height (Maximum)
To Pivot Pin (A)	1809 mm (71 in)
Clearance
Bucket Level (B)	1653 mm (65 in)
Bucket Dumped (C)	1371 mm (54 in)
Overall Length (WB + F)	2626 mm (103 in)
Digging Depth (H)	101 mm (4 in)

Reach
At Maximum Lift Height with Bucket Dumped (D)	571 mm (22.5 in)
Bucket on Ground with Bucket Leveled (F)	1176 mm (46 in)
Angles (Maximum)
Dump (E)	40°
Dump at Ground	114°
Rollback (G)	31°
Rollback at Full Height	—
Overall Height In carrying position (J)	—
Lift Capacity
To Maximum Height (U) at Pivot Point	319 kg (703 lb)
To Maximum Height (V)	232 kg (512 lb)
To 1500 mm (59 in) at pivot pin (W)	331 kg (730 lb)
To 1500 mm (59 in) (X)	265 kg (584 lb)
Breakout Force
At Pivot Point (Y)	782 kg-force (1724 lbf)
500 mm forward of pivot point (Z)	595 kg-force (1312 lbf)
Bucket Rollback Force
At maximum height (VV)	763 kg-force (1682 lbf)
At 1500 mm (59 in) lift height (XX)	789 kg-force (1740 lbf)
At Ground Level Line (ZZ)	867 kg-force (1912 lbf)
