Detach H120 Loader

1.


   W14000-UN-05OCT88

   Prevent possible injury caused by a falling or shifting loader. Always detach the loader on a hard, level surface. DO NOT detach the loader equipped with a pallet fork. A materials bucket is recommended.

   Remove the ballast box. (See Remove Ballast Box in this section.)

---




2. Ensure that the loader is equipped with a materials bucket.

3. Start the engine.

4. Release the park brake and place the transmission in NEUTRAL.

5.

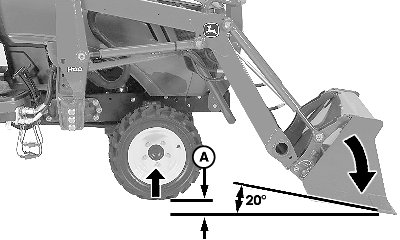

   W27333-UN-21MAR16

   A - Distance, 25—50 mm (1—2 in)

   Dump the bucket approximately 20° and lower the boom to the ground.

---




6. To raise the front wheels 25—50 mm (1—2 in) (A) off the ground, retract lift cylinders.

7.

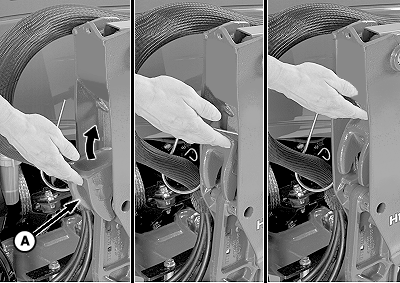

   W27334-UN-21MAR16

   Right-Hand Side Shown

   A - Latch (1 each side)

   Push upward on the handle to disengage the latch (A). Repeat on the opposite side.

---




8.

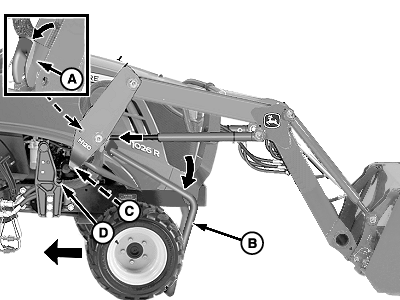

   W27335-UN-21MAR16

   Right-Hand Side Shown

   A - Latch (1 each side)

   B - Parking Stand

   C - Mast Pin (1 each side)

   D - Saddle (1 each side)

   Extend lift cylinders until the parking stand (B) contacts the ground and mast pins (C) lift out of mounting frame saddles (D). Continue to extend lift cylinders until latches (A) on both sides automatically return to the locked (down) position.

---




9. Prevent possible injury from a latch closure. Make sure that latches are closed before leaving the loader unattended.

   Engage the park brake and place the transmission in PARK.

10. Shut off engine and remove ignition key.

11.


    X9811-UN-23AUG88

    Avoid injury from escaping hydraulic oil under pressure. Relieve the hydraulic pressure from the system.

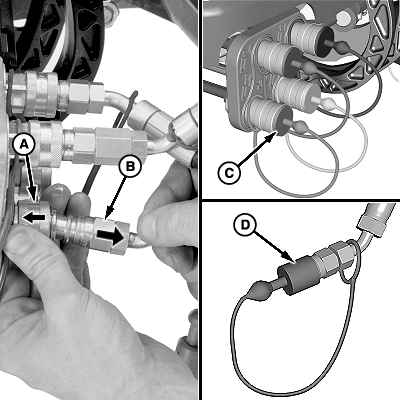

    W21472-UN-18FEB11

    A - Collar (4 used)

    B - Coupler, Male (4 used)

    C - Plug (4 used)

    D - Cap (4 used)

    Move the hydraulic control lever back-and-forth and side-to-side several times. See the tractor Operator's Manual for more information.

---




12. Disconnect hydraulic hoses from the tractor:

    1. Push back the collar (A) on the female coupler and pull out the male coupler (B).

    2. Install the dust plug (C) in the female coupler and cap (D) on the male coupler as shown.

    3. Repeat for the remaining couplers.

13.

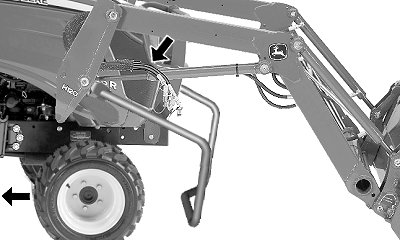

    W27336-UN-21MAR16

    Store the hoses on the lift cylinder. DO NOT lay the hoses on the ground.

---




14. Avoid damaging the hoses. Make sure that the hoses DO NOT interfere with the tractor when backing away from the loader.

    Back the tractor away from the loader.
