Attach H120 Loader

1.

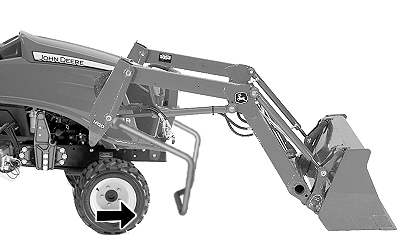

   W27342-UN-21MAR16

   Prevent possible injury from tractor instability. Ensure that the tractor is prepared for loader operation. (See Prepare Tractor section).

   Prepare the tractor for loader operation. (See Prepare the Tractor section.)

---




2. Inspect the loader for damaged or missing parts.

3. Ensure that all hydraulic fittings are free of dirt.

4. Start the engine.

5. Drive forward and position the tractor between the loader booms.

6. Apply the park brake and shut off the engine.

7.


   X9811-UN-23AUG88

   Prevent possible injury from escaping hydraulic oil under pressure. Relieve the hydraulic pressure in the system.

   Relieve the hydraulic pressure by moving the control lever back-and-forth and side-to-side several times.

---




8.

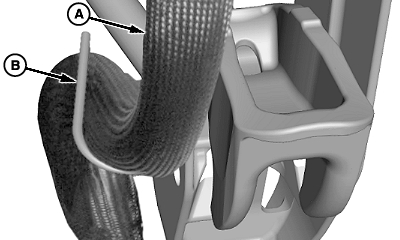

   W21484-UN-05APR11

   A - Hose Bundle

   B - Guide

   Place the hydraulic hose bundle (A) in the guide (B) as shown.

---




9.

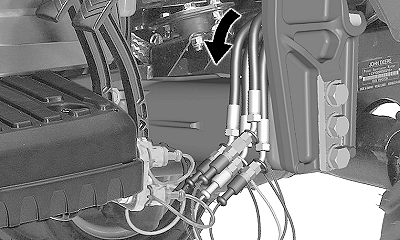

   W21466-UN-14MAR11

   Right-Hand Side

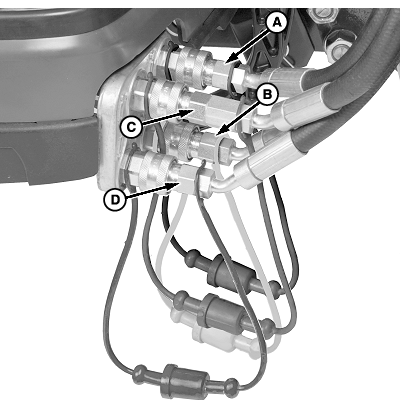

   W21410-UN-16FEB11

   Route the hoses over the mounting frame and connect hydraulic couplers using color-coded caps and plugs.

   Key	Dust Cap/Plug Color	Hydraulic Function
   A	Black	Bucket Cylinder—Rod End
   B	Yellow	Bucket Cylinder—Head End
   C	Blue	Lift Cylinder—Head End
   D	Red	Lift Cylinder—Rod End

---




10. Connect color-coded caps and plugs together.

11.


    W20683-UN-17FEB10

    Prevent possible injury. Keep hands clear of moving parts.

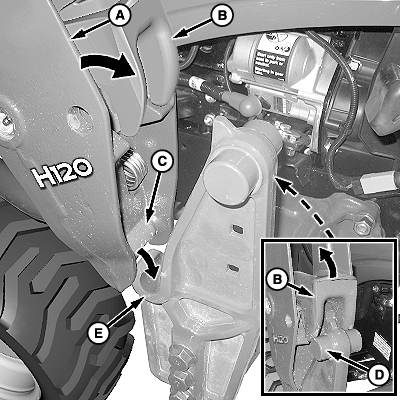

    W27343-UN-21MAR16

    Left-Hand Side Shown

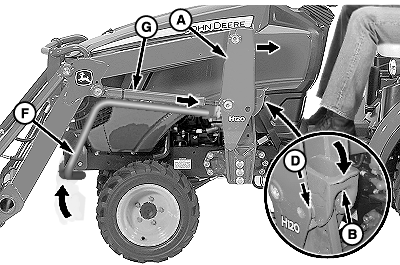

    W27344-UN-21MAR16

    A - Mast (1 each side)

    B - Latch (1 each side)

    C - Pin, Mast (1 each side)

    D - Pin, Mounting Frame (1 each side)

    E - Saddle (1 each side)

    F - Parking Stand

    G - Lift Cylinder (1 each side)

    Retract lift cylinders (G) until mast pins (C) are seated in saddles (E) on both sides.

---




12. As masts (A) are tilted back, mounting frame pins (D) open latches (B) and then return them to the locked position. Parking stand (F) automatically raises to the stored position under the tractor during the procedure.

    Dump the bucket and retract lift cylinders (G) until the loader masts move back and latches (B) contact mounting frame pins (D), causing them to open.

13. Continue retracting lift cylinders (G) until latches (B) return to the locked position. Verify that latches are fully engaged on both sides and parking stand (F) is in the stored position under the tractor frame.
