Use Bucket Level Indicator
Avoid rapid bucket wear. Use the bucket level indicator so that wear pads contact rough surfaces instead of the bucket edge.
W27349-UN-21MAR16

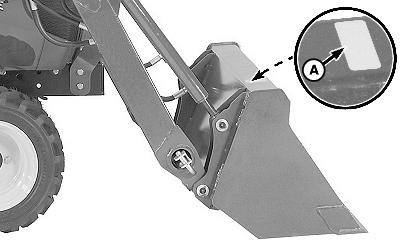

D120 Loader—Bucket Level Indicator Label
A - Indicator Label
D120 Loader: An indicator label (A) is used. Bucket is level when the indicator label, viewed by the operator in the operator’s seat, is level to the ground.
W23289-UN-14NOV12

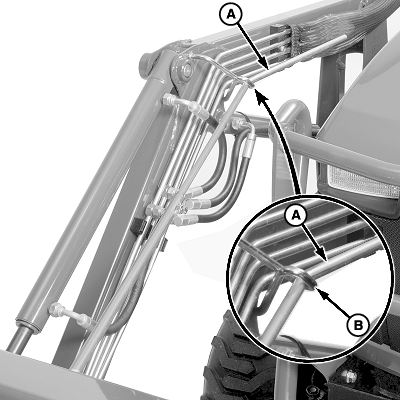

H120 Loader—Bucket Level Indicator Rod
A - Indicator Rod
B - Bracket
H120 Loader: An indicator rod (A) is used. Adjust the bucket until the bend in the rod is resting in the bracket (B) for level operation. (See Adjust Bucket Level Indicator in Service section.)|
